South Island 0800 4 ABSOLUTE
North Island 0800 4 BLADES
smartphone-303-726-977-823

Dashclean Vacuums

DashClean LOGO-895
Quality Extraction, Compliant with WorkSafe NZ
Silica Dust Control & Containment Regulations.
Reliable Performance, Great Price!

DashClean G-Series Extractors feature a two-stage, H-Class, HEPA filtering system with the convenience of the continuous bag system for the ABSOLUTE best dust control available!

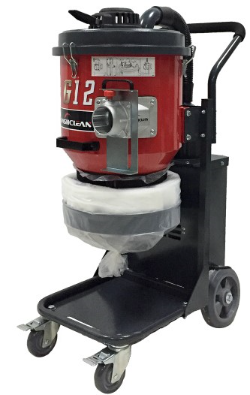

G12-S, single phase, single 1700W motor

DashClean G12-s-780
Technical Data
Motor Ametek 240V, 1700W, Model 119998-08
Pre Filter F8 Grade to German Standards EN1822:2009, 1.5m2, >99.5% @1.0 um
Hepa Filter H13 Grade to German Standards EN1822:2009, 1.2m2, >99.97% @ 0.3 um
Air Flow 300m3 Per Hour
Vacuum 345 mba
Dimensions 0.65m x 0.4m x 1.02m
Weight 43kg


The Most Powerful in its Class!!!

50% More Suck than its Competitors

G22 : a single phase, twin 1200W motor.

DashClean G22-357
Technical Data
Motor Ametek 240V, 2x 1200W, Model 119656-00
Pre Filter F8 Grade to German Standards EN1822:2009, 3.2m2, >99.5% @1.0 um
Hepa Filter H13 Grade to German Standards EN1822:2009, 2.4m2, >99.97% @ 0.3 um
Air Flow 400m3 Per Hour
Vacuum 220 mba
Dimensions 0.65m x 0.58m x 1.22m
Weight 56kg

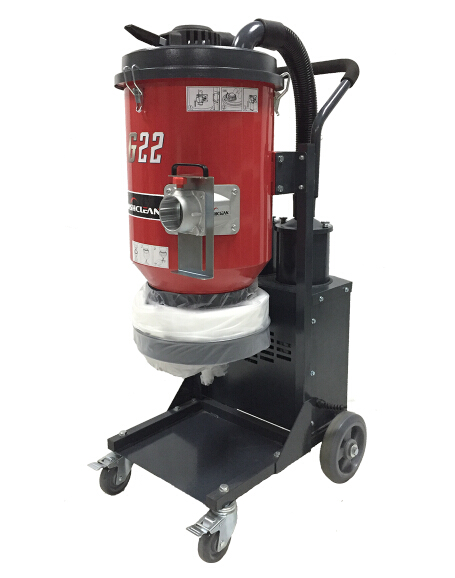

BEST VALUE!! G22-S, single phase Twin 1.7kW motors.
DashClean G22
Technical Data - 15 Amp
Motor Ametek 240V, 2x 1700W, Model 119998-08
Pre Filter F8 Grade to German Standards EN1822:2009, 3.2m2, >99.5% @1.0 um
Hepa Filter H13 Grade to German Standards EN1822:2009, 2.4m2, >99.97% @ 0.3 um
Air Flow 600m3 Per Hour
Vacuum 345 mba
Dimensions 0.65m x 0.58m x 1.22m
Weight 53kg















3 Motor Performance in a 2 Motor Package

G022 Dust Pre-Separator
g022-189

G022 - Cyclonic Dust Pre-Separator

- Rigid, Molded Polyethylene Body

- Endless Bagging System by DashClean

- Get More Life out of your Extractor Filters

When a coarse or voluminous dust is needed to be handled, your continuous bagging industrial vacuum may need to be supplemented with a pre-separator.
A pre-separator introduces an additional separation to capture more than 95% of dust before it can reach the vacuum significantly improving filter performance and reducing the frequency of filter maintenance, this contributes to a higher airflow and extends the life time of filters & motor in your Extractor.
text button-103
Parts and Accessories

We have a huge range in stock today ...
dashclean bags-893-192

High quality Dashclean continuous vacuum bags with ties

dashclean hose-675-474-488-28-905

Full Range of Vacuum hoses and couplings

dashclean filter-800-154

Dashclean conical pre-filters and HEPA filters



Dashclean parts-166-23-911

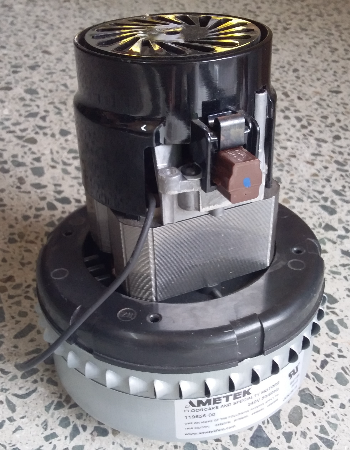

Ametek motors for Dashclean, Ermator & Bersi vacuums

Motor and Filters are the same as the Pullman Ermator Vacuum
Picture4-593
